*Note: The pointer shown is designed to fit a Big Block Ford with a Danny Bee Belt drive system using a short-snout aftermarket crankshaft. The pointer works with an ATI 7" Super Damper with a "C" or 10 o'clock timing location.
KFM offers timing pointers for any Big Block Ford 429-460 engine, stock or all out racing applications.

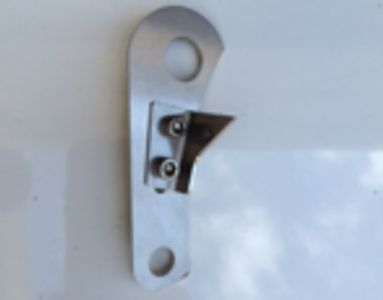

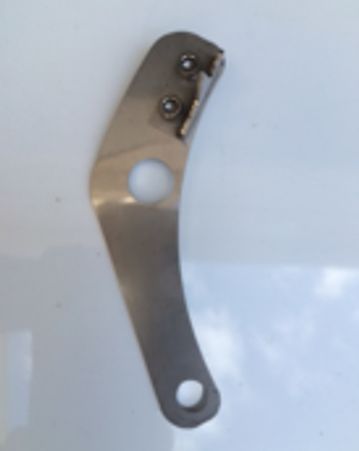

Our belt drive pointers are designed to fit Danny Bee or Innovators West belt drive systems. Each pointer is precision laser cut from stainless steel and provides five degrees of adjustment for the zero TDC location. The pointer mounts under the nut and washer on the idler and attaches to the lower timing cover bolt. Two different pointers are offered, depending on the damper preferred by the builder.
Pointers for the O.E. type timing cover are designed to be an exact replacement for the factory part. The precision laser cut and CNC bent pointer is offered in steel and stainless steel, providing an economical alternative to more elaborate replacement pointers.

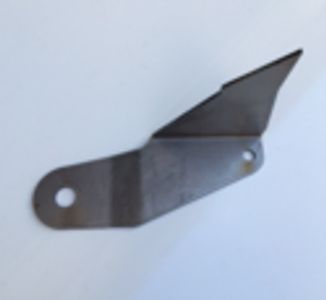

Part # 1420238 - Big Block Ford 429-460 with Danny Bee Belt Drive - 10 O’clock Zero - Price $49
Use with ATI 917562 damper, or others with 7” OD with “C” or 10 O’clock TDC zero location. The zero point on this damper will be approximately .725” below the center of the Danny Bee idler pulley.
Part # 1420239 - Big Block Ford 429-460 with Danny Bee Belt Drive - 11 O’clock Zero - Price $49
Use with Innovators West damper, or others with 7” OD with “B” or 11 O’clock TDC zero location. The zero point on this damper will be approximately 1.125” above the center of the Danny Bee idler pulley.
Part # 1420330 - Big Block Ford 429-460 with O.E. Timing Cover - Bare Steel - Price $16

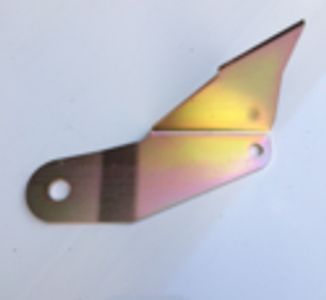

Part # 1420331 - Big Block Ford 429-460 with O.E. Timing Cover - Gold Zinc - Price $19

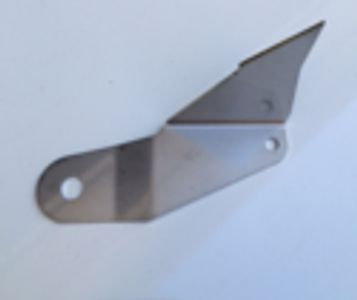

Part # 1420337 - Big Block Ford 429-460 with O.E. Timing Cover - Stainless Steel - Price $24
